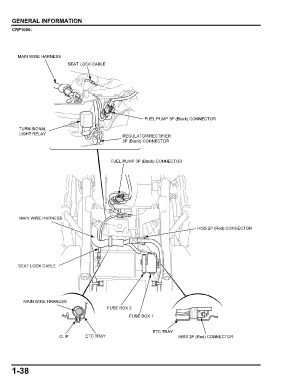

GENERAL INFORMATION
CRF1000:
MAIN WIRE HARNESS
SEAT LOCK CABLE
FUEL PUMP 3P (Black) CONNECTOR
TURN SIGNAL
LIGHT RELAY
REGULATOR/RECTIFIER
3P (Black) CONNECTOR
FUEL PUMP 3P (Black) CONNECTOR
MAIN WIRE HARNESS
HISS 2P (Red) CONNECTOR
SEAT LOCK CABLE
MAIN WIRE HARNESS
FUSE BOX 2
FUSE BOX 1
ETC TRAY
CLIP ETC TRAY HISS 2P (Red) CONNECTOR
1-38
