Page 78 - NSU Supermax Owner's Manual
P. 78

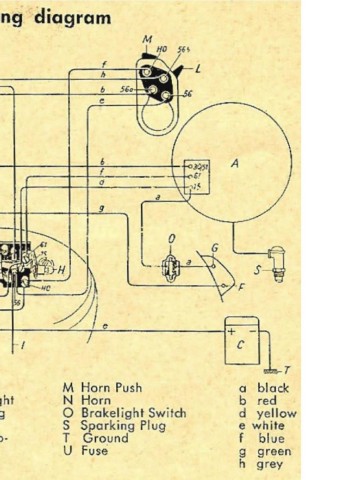

Wiring diagram
f
h
o E
A Dynamo F Tail Lamp M Horn Push a black
B Juncktion Black G Bulb for Stoplight N Horn b red
with Switch H Ignition warning o Brakelight Switch d yellow
C Battery light S Sparking Plug e white
D Double Filament Bulb for Speedo- T Ground f blue
~ Bulb meter U Fuse g green
E Pilot Bulb Dipper Switch h grey
