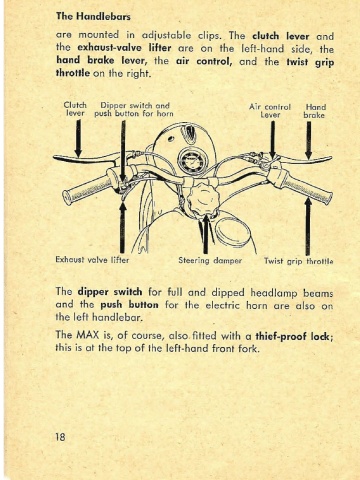

The Handlebars
The Front Fork,
are mounted in adjustable clips. The dutch lever and mounted on adjustable ball
the exhaust-valve lifter are on the left-hand side, the bearings in the steering head of
the frame, has at its bottom
hand brake lever, the air control, and the twist grip two swinging arms which ac­
throttle an the right. commodate th'e front wheel.
The swinging arms are cushioned'
in relation to the front fork by
Clutch Air control Hand one compression spring each.
lever Lever broke Hydraulic shack-absorbers are
built into these springs.

The Pivoted Rear Fork
is cushioned by suspension
units and hydraulically dam­
ped.
Exhaust valve lifter Steering damper Twist grip throttle

The dipper switch for full and dipped head lamp beams
and the push button for the electric horn are also on
the left handlebar.
The MAX is, of course, also. fitted with a thief-proof lock;
this is at the top of the left-hand frant fork.

The rear Mudguard
with detachable end (and Iyg­
gage carrier) is overhung on
the spring cushioned frame.
18
19
