P. 37
Pour one quart of SAE 20 engine oil into the oil tank. Every 1,200 miles
Let the engine idle for a few minutes and note that

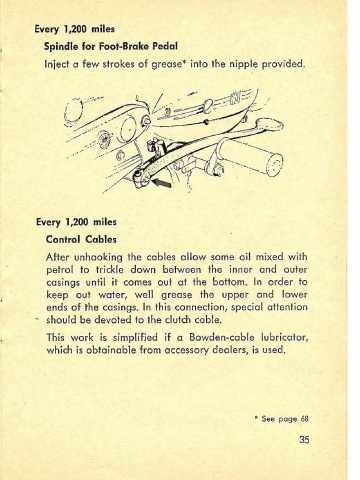

the oil is returned into the oil tank correctly. Then drain Spindle for Foot-Brake Pedal
this oil off as described above and pour in one quart Inject a few strokes of grease* into the nipple provided.
of engine oil*.
Run the engine until there is no further change in the
oil level, and then at once add fresh oil to bring the
level up to that of the upper mark on the dipstick
- Do not overfill, Oil capacity 2 Htres (3 /2 pints),
1
Every 1,200 miles
Control Levers on the Handlebars
should be lightly lubricated with engine oil.
Every 1,200 miles
Starter Spindle Every 1,200 miles
Inject a few strokes of grease* into the nipple provided. Control Cables
After unhooking the cables allow some oil mixed with
petrol to trickle down between the inner and outer'
casings until it comes out at the bottom. In order to
,keep out water, well grease the upper and lower
ends of the casings. In this connection, special attention
• should be devoted to the clutch cable.
This work is simplified if a Bowden-cable lubricator,
which is obtainable from accessory dealers, is used.
• See page 68 • See page 68
34 35
