Page 40 - NSU Supermax Owner's Manual

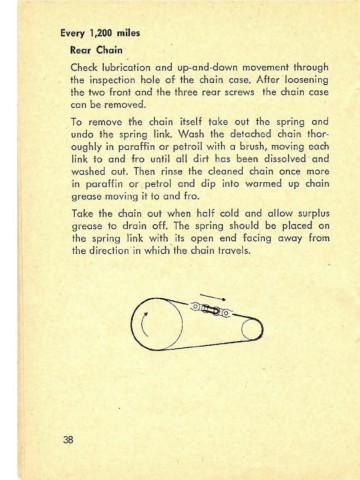

Every 1,200 miles Every 2,400 miles
Rear Chain Speedometer Drive
Apply a few shots of grease* t6 nipple.
Check lubrication and up-and-down movement through
the inspection hole of the chain case. After loosening
the two front and the three rear screws the chain case
can be removed.
To remove the chain itself take out the spring and
. undo the spring link. Wash the detached chain thor­
oughly in paraffin or petroil with a brush, moving each
link to and fro until all dirt has been dissolved and
washed out. Then rinse the cleaned chain once more
in paraffin or. petrol and dip into warmed up chain
grease moving it to and fro.
Take the chain out when half cold and allow surplus
grease to drain off. The spring should be placed on
the spring link with its open end facing away from
the direction in which-the chain travels.

Every 2,400 miles
Clutch Operating Rod
Apply a few sh~ts of grease* to nipple.
~

* See page 68
38 39
