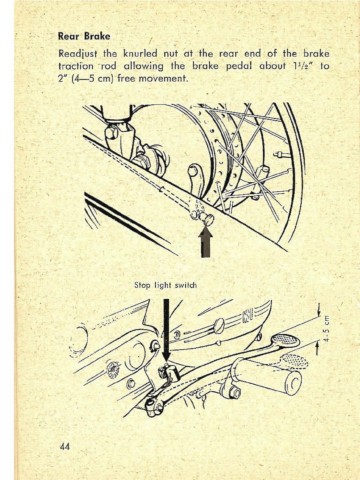

~. Rear Brake Dependi~g on .the pesition of the right~hand footrest
/ ­
t.he brake: pedal can be 'adjusted to the most convenient
Readjust the kr'lurled nut d! the rear e.nd .of the brake position for.9peration by means of the set screw. Retight­
traction 'rod allowi.ng the brake pedal about V/2" to
en t~e lock nut. Each time. the rear brake is adi~sted, it
2" (4-5 em) free movement.
is advisable to check that the stop light works correctly.
-.
Clean brake linings in petrol if oily, replace if he~vily
worn.
