Page 47 - NSU Supermax Owner's Manual
P. 47

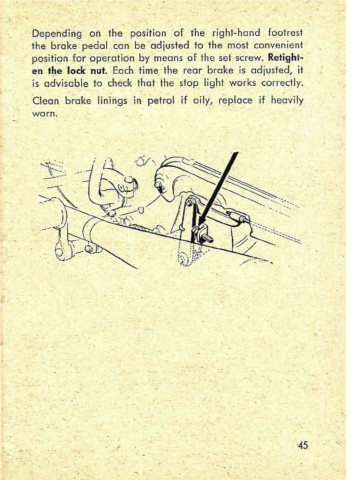

~.  Rear  Brake   Dependi~g  on  .the  pesition  of  the  right~hand  footrest
 /   ­
      t.he  brake: pedal  can  be 'adjusted  to  the  most  convenient
 Readjust  the  kr'lurled  nut  d!  the  rear  e.nd  .of  the  brake   position  for.9peration  by  means  of the set screw.  Retight­
 traction  'rod  allowi.ng  the  brake  pedal  about  V/2"  to
      en  t~e  lock  nut.  Each  time. the  rear  brake  is  adi~sted,  it
 2"  (4-5 em)  free movement.
      is  advisable to  check  that  the  stop  light  works  correctly.
                                                       -.
      Clean  brake  linings  in  petrol  if  oily,  replace  if  he~vily
      worn.














 Stop  light  switch










                                  r


 44                                               -45   '':
