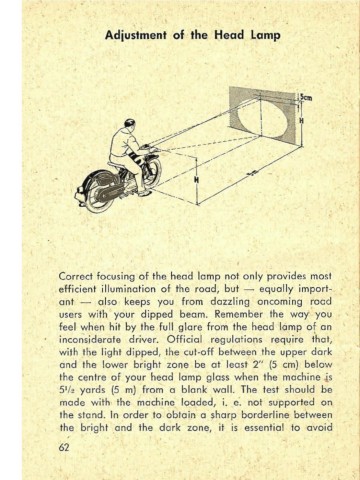

A~iustment of the Head Lamp 'soiling' the- reflector. ,Tne same is true of bulbs, which
should therefore not be removed or fitted with bare
fingers, but with a- clean piece of cloth or paper. Also,
the.~utes on the head lamp glass must be in a vertical
positIOn.
The "Max" is furnished by our Works with this head
lamp adjustment.
If the load is incr~ased, the headlamp must be readjusted.

Correct focusing of the 'head lamp not only provides most
efficient illumination of the road, but - equally import-_
I
ant - also keeps you from dazzling oncoming road . .t
users with your dipped beam. Remember the wai you ' [.
feel when hit by the full glare from the head lamp of an
inconsiderate driver. Official regulations rl;lql!ire thot,
with the light dipped, the cut-off between the upper dork
and the lower bright 'zone be at least 2" (5 em) below
the centre of your head lamp glass when the machine 's
5'12 yards (5 m) from a blank wall. The test should be
made with. the machine loaded, i. e'. not supported on
the stand. In order to obtain a sharp borderline between
the bright and the dark zone, it is essential 10 avoid
