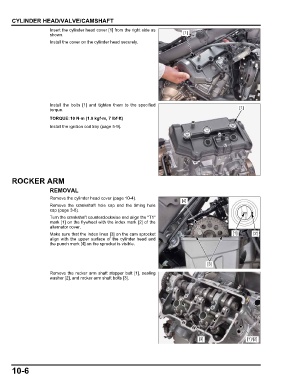

CYLINDER HEAD/VALVE/CAMSHAFT
Insert the cylinder head cover [1] from the right side as
shown. [1]
Install the cover on the cylinder head securely.

Install the bolts [1] and tighten them to the specified
torque. [1]
TORQUE:10 N·m (1.0 kgf·m, 7 lbf·ft)
Install the ignition coil tray (page 5-9).

ROCKER ARM

REMOVAL
Remove the cylinder head cover (page 10-4).
[4]
Remove the crankshaft hole cap and the timing hole
cap (page 3-8).
Turn the crankshaft counterclockwise and align the "T1"
mark [1] on the flywheel with the index mark [2] of the
alternator cover.
Make sure that the index lines [3] on the cam sprocket [1] [2]
align with the upper surface of the cylinder head and
the punch mark [4] on the sprocket is visible.

[3]
Remove the rocker arm shaft stopper bolt [1], sealing
washer [2], and rocker arm shaft bolts [3].

[3] [1]/[2]

10-6
