FRAME/BODY PANELS/EXHAUST SYSTEM

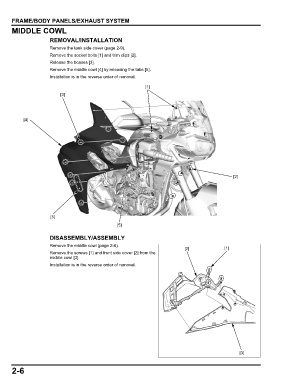

MIDDLE COWL

REMOVAL/INSTALLATION
Remove the tank side cover (page 2-9).
Remove the socket bolts [1] and trim clips [2].
Release the bosses [3].
Remove the middle cowl [4] by releasing the tabs [5].
Installation is in the reverse order of removal.

[1]
[3]

[4]

[2]

[5]
[5]

DISASSEMBLY/ASSEMBLY
Remove the middle cowl (page 2-6).
[2] [1]
Remove the screws [1] and front side cover [2] from the
middle cowl [3].
Installation is in the reverse order of removal.

[3]

2-6
