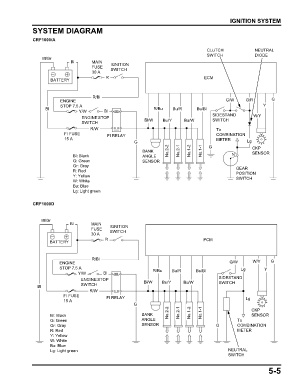

IGNITION SYSTEM
SYSTEM DIAGRAM

CRF1000/A
CLUTCH NEUTRAL
SWITCH DIODE
Bl/Gr
Bl MAIN
FUSE IGNITION
SWITCH
30 A
R ECM
BATTERY

R/Bl
ENGINE G/W G/R G
STOP 7.5 A Y
Bl R/Bu Bu/R Bu/Bl
Y/W Bl
ENGINE STOP Bl/W SIDESTAND W/Y
SWITCH
SWITCH Bu/Y Bu/W
R/W To
FI FUSE FI RELAY COMBINATION
15 A METER
G Lg
BANK No.2-2 No.2-1 No.1-2 No.1-1 G CKP
SENSOR
Bl: Black ANGLE N
G: Green SENSOR
Gr: Gray GEAR
R: Red POSITION
Y: Yellow SWITCH
W: White
Bu: Blue
Lg: Light green

CRF1000D

Bl/Gr
Bl MAIN
FUSE IGNITION
30 A SWITCH
R PCM
BATTERY

R/Bl
ENGINE G/W W/Y G
STOP 7.5 A R/Bu Bu/R Bu/Bl Lg Y
Y/W Bl
ENGINE STOP Bl/W Bu/Y Bu/W SIDESTAND
SWITCH
Bl SWITCH
R/W
FI FUSE FI RELAY Lg
15 A
G

SENSOR
Bl: Black BANK No.2-2 No.2-1 No.1-2 No.1-1 CKP
G: Green ANGLE To
Gr: Gray SENSOR G COMBINATION
R: Red METER
Y: Yellow
W: White
Bu: Blue
Lg: Light green NEUTRAL
SWITCH
