IGNITION SYSTEM

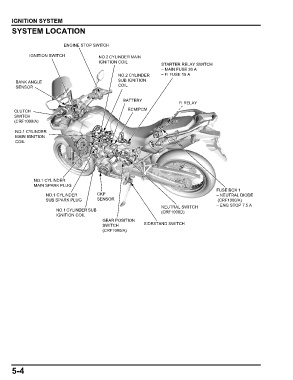

SYSTEM LOCATION

ENGINE STOP SWITCH

IGNITION SWITCH NO.2 CYLINDER MAIN
IGNITION COIL
STARTER RELAY SWITCH
– MAIN FUSE 30 A
NO.2 CYLINDER – FI FUSE 15 A
BANK ANGLE SUB IGNITION
SENSOR COIL

BATTERY
FI RELAY
CLUTCH ECM/PCM
SWITCH
(CRF1000/A)

NO.1 CYLINDER
MAIN IGNITION
COIL

NO.1 CYLINDER
MAIN SPARK PLUG
FUSE BOX 1
NO.1 CYLINDER CKP – NEUTRAL DIODE
SUB SPARK PLUG SENSOR (CRF1000/A)
NEUTRAL SWITCH – ENG STOP 7.5 A
NO.1 CYLINDER SUB (CRF1000D)
IGNITION COIL
GEAR POSITION
SWITCH SIDESTAND SWITCH
(CRF1000/A)

5-4
