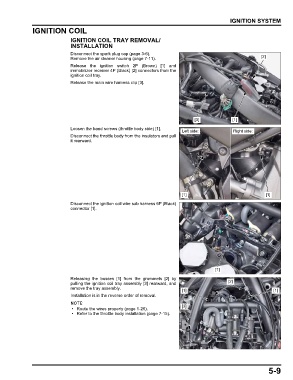

Page 161 - 2019 SHOP MANUAL CRF1000/A/D

dummyheadmmyhead
du

IGNITION SYSTEM
IGNITION COIL

IGNITION COIL TRAY REMOVAL/
INSTALLATION
Disconnect the spark plug cap (page 3-6).
Remove the air cleaner housing (page 7-11). [2]
Release the ignition switch 2P (Brown) [1] and
immobilizer receiver 4P (Black) [2] connectors from the
ignition coil tray.
Release the main wire harness clip [3].

[3] [1]
Loosen the band screws (throttle body side) [1].
Left side: Right side:
Disconnect the throttle body from the insulators and pull
it rearward.

[1] [1]
Disconnect the ignition coil wire sub harness 6P (Black)
connector [1].

[1]
Releasing the bosses [1] from the grommets [2] by
pulling the ignition coil tray assembly [3] rearward, and [2]
remove the tray assembly. [1] [1]
Installation is in the reverse order of removal.

[3]
• Route the wires properly (page 1-26).
• Refer to the throttle body installation (page 7-15).

5-9
