ELECTRIC STARTER

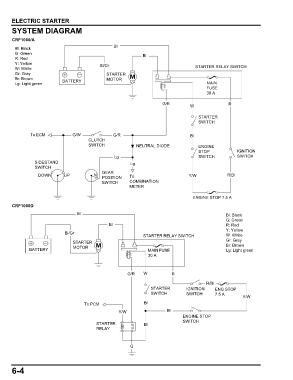

SYSTEM DIAGRAM

CRF1000/A
Bl
Bl: Black
G: Green Bl
R: Red
Y: Yellow Bl/Gr
W: White STARTER RELAY SWITCH
Gr: Gray STARTER
Br: Brown BATTERY MOTOR
Lg: Light green MAIN
FUSE
30 A
G/R R
W

STARTER
SWITCH

To ECM G/W G/R Bl
CLUTCH
SWITCH NEUTRAL DIODE ENGINE
STOP IGNITION
Lg SWITCH SWITCH
SIDESTAND Lg
SWITCH
GEAR
DOWN UP N Y/W R/Bl
POSITION To
SWITCH COMBINATION
METER

ENGINE STOP 7.5 A
CRF1000D
Bl Bl: Black
G: Green
Bl R: Red
Y: Yellow
Bl/Gr
STARTER RELAY SWITCH W: White
STARTER Gr: Gray
MOTOR Br: Brown
BATTERY MAIN FUSE Lg: Light green
30 A

G/R W R
R/Bl
STARTER IGNITION ENG STOP
SWITCH SWITCH 7.5 A
Y/W
To PCM Bl
Y/W Bl
ENGINE STOP
SWITCH
STARTER Bl
RELAY

G

6-4
