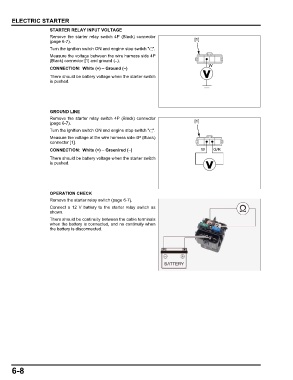

ELECTRIC STARTER
STARTER RELAY INPUT VOLTAGE
Remove the starter relay switch 4P (Black) connector
(page 6-7). [1]
Turn the ignition switch ON and engine stop switch " ".
Measure the voltage between the wire harness side 4P
(Black) connector [1] and ground (–).
W
CONNECTION: White (+) – Ground (–)
There should be battery voltage when the starter switch
is pushed.

GROUND LINE
Remove the starter relay switch 4P (Black) connector
(page 6-7). [1]
Turn the ignition switch ON and engine stop switch " ".
Measure the voltage at the wire harness side 4P (Black)
connector [1].
CONNECTION: White (+) – Green/red (–) W G/R

There should be battery voltage when the starter switch
is pushed.

OPERATION CHECK
Remove the starter relay switch (page 6-7).
Connect a 12 V battery to the starter relay switch as
shown.
There should be continuity between the cable terminals
when the battery is connected, and no continuity when
the battery is disconnected.

6-8
