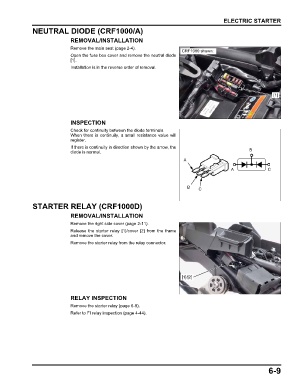

ELECTRIC STARTER
NEUTRAL DIODE (CRF1000/A)

REMOVAL/INSTALLATION
Remove the main seat (page 2-4).
CRF1000 shown:
Open the fuse box cover and remove the neutral diode
[1].
Installation is in the reverse order of removal.

[1]

INSPECTION
Check for continuity between the diode terminals.
When there is continuity, a small resistance value will
register.
If there is continuity in direction shown by the arrow, the
diode is normal. B
A

A C

B C

STARTER RELAY (CRF1000D)
REMOVAL/INSTALLATION

Remove the right side cover (page 2-11).
Release the starter relay [1]/cover [2] from the frame
and remove the cover.
Remove the starter relay from the relay connector.

[1]/[2]

RELAY INSPECTION
Remove the starter relay (page 6-9).
Refer to FI relay inspection (page 4-44).

6-9
