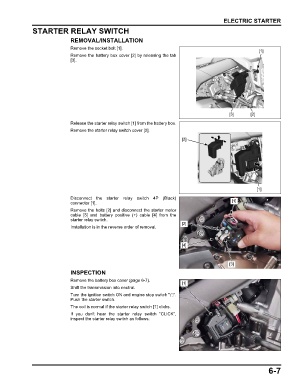

Page 169 - 2019 SHOP MANUAL CRF1000/A/D

dummyheadmmyhead
du

ELECTRIC STARTER
STARTER RELAY SWITCH

REMOVAL/INSTALLATION
Remove the socket bolt [1].
[1]
Remove the battery box cover [2] by releasing the tab
[3].

[3] [2]

Release the starter relay switch [1] from the battery box.
Remove the starter relay switch cover [2].

[2]

[1]
Disconnect the starter relay switch 4P (Black)
connector [1]. [1]
Remove the bolts [2] and disconnect the starter motor
cable [3] and battery positive (+) cable [4] from the
starter relay switch.
[2]
Installation is in the reverse order of removal.

[4]

[3]
INSPECTION
Remove the battery box cover (page 6-7).
[1]
Shift the transmission into neutral.
Turn the ignition switch ON and engine stop switch " ".
Push the starter switch.
The coil is normal if the starter relay switch [1] clicks.
If you don't hear the starter relay switch "CLICK",
inspect the starter relay switch as follows:

6-7
