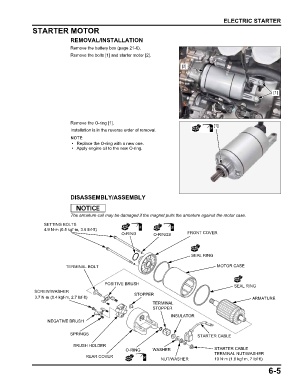

ELECTRIC STARTER
STARTER MOTOR

REMOVAL/INSTALLATION
Remove the battery box (page 21-6).
Remove the bolts [1] and starter motor [2].

[2]

[1]

Remove the O-ring [1].
[1]
Installation is in the reverse order of removal.

• Replace the O-ring with a new one.
• Apply engine oil to the new O-ring.

DISASSEMBLY/ASSEMBLY

The armature coil may be damaged if the magnet pulls the armature against the motor case.
SETTING BOLTS
4.9 N·m (0.5 kgf·m, 3.6 lbf·ft)
O-RING O-RINGS FRONT COVER

SEAL RING

TERMINAL BOLT MOTOR CASE

POSITIVE BRUSH
SEAL RING
SCREW/WASHER
STOPPER
3.7 N·m (0.4 kgf·m, 2.7 lbf·ft) ARMATURE
TERMINAL
STOPPER
INSULATOR
NEGATIVE BRUSH

SPRINGS STARTER CABLE

BRUSH HOLDER
O-RING WASHER STARTER CABLE
TERMINAL NUT/WASHER
REAR COVER
NUT/WASHER 10 N·m (1.0 kgf·m, 7 lbf·ft)
6-5
