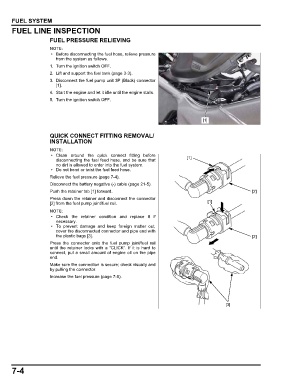

FUEL SYSTEM
FUEL LINE INSPECTION

FUEL PRESSURE RELIEVING

• Before disconnecting the fuel hose, relieve pressure
from the system as follows.
1. Turn the ignition switch OFF.
2. Lift and support the fuel tank (page 3-3).
3. Disconnect the fuel pump unit 3P (Black) connector
[1].
4. Start the engine and let it idle until the engine stalls.
5. Turn the ignition switch OFF.

[1]

QUICK CONNECT FITTING REMOVAL/
INSTALLATION

• Clean around the quick connect fitting before [1]
disconnecting the fuel feed hose, and be sure that
no dirt is allowed to enter into the fuel system.
• Do not bend or twist the fuel feed hose.
Relieve the fuel pressure (page 7-4).
Disconnect the battery negative (-) cable (page 21-5).
Push the retainer tab [1] forward. [2]
Press down the retainer and disconnect the connector
[2] from the fuel pump joint/fuel rail. [1]

• Check the retainer condition and replace it if
necessary.
• To prevent damage and keep foreign matter out,
cover the disconnected connector and pipe end with
the plastic bags [3]. [2]
Press the connector onto the fuel pump joint/fuel rail
until the retainer locks with a “CLICK”. If it is hard to
connect, put a small amount of engine oil on the pipe
end.
Make sure the connection is secure; check visually and
by pulling the connector.
Increase the fuel pressure (page 7-5).

[3]

7-4
