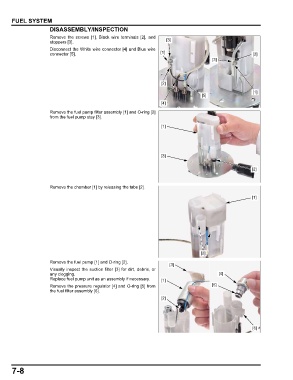

Page 180 - 2019 SHOP MANUAL CRF1000/A/D

du
dummyheadmmyhead

FUEL SYSTEM
DISASSEMBLY/INSPECTION
Remove the screws [1], Black wire terminals [2], and
stoppers [3]. [3]
Disconnect the White wire connector [4] and Blue wire
connector [5]. [1] [2]
[3]

[2]
[1]
[5]
[4]

Remove the fuel pump filter assembly [1] and O-ring [2]
from the fuel pump stay [3].
[1]

[3]

[2]

Remove the chamber [1] by releasing the tabs [2].

[1]

[2]

Remove the fuel pump [1] and O-ring [2].
[3]
Visually inspect the suction filter [3] for dirt, debris, or
any clogging. [4]
Replace fuel pump unit as an assembly if necessary. [1]
Remove the pressure regulator [4] and O-ring [5] from [5]
the fuel filter assembly [6].
[2]

[6]

7-8
