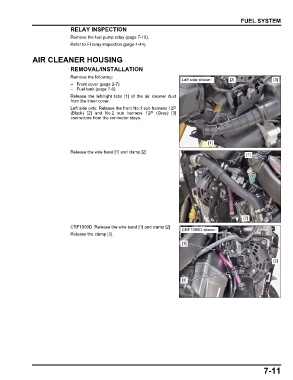

FUEL SYSTEM
RELAY INSPECTION
Remove the fuel pump relay (page 7-10).
Refer to FI relay inspection (page 4-44).

AIR CLEANER HOUSING

REMOVAL/INSTALLATION
Remove the following:
Left side shown: [2] [3]
– Front cover (page 2-7)
– Fuel tank (page 7-6)
Release the left/right tabs [1] of the air cleaner duct
from the inner cover.
Left side only: Release the front No.1 sub harness 12P
(Black) [2] and No.2 sub harness 12P (Gray) [3]
connectors from the connector stays.

[1]
Release the wire band [1] and clamp [2].
[1]

[2]
CRF1000D: Release the wire band [1] and clamp [2].
CRF1000D shown:
Release the clamp [3].

[1]

[2]

[3]
