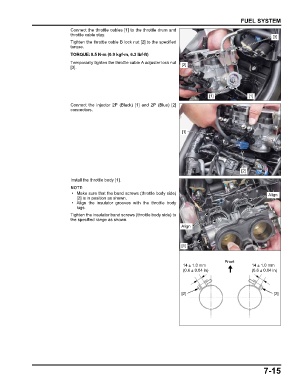

Page 187 - 2019 SHOP MANUAL CRF1000/A/D

dummyheadmmyhead
du

FUEL SYSTEM
Connect the throttle cables [1] to the throttle drum and
throttle cable stay. [3]
Tighten the throttle cable B lock nut [2] to the specified
torque.
TORQUE:8.5 N·m (0.9 kgf·m, 6.3 lbf·ft)
Temporarily tighten the throttle cable A adjuster lock nut [2]
[3].

[1] [1]

Connect the injector 2P (Black) [1] and 2P (Blue) [2]
connectors.

[1]

[2]
Install the throttle body [1].

• Make sure that the band screws (throttle body side) Align
[2] is in position as shown.
• Align the insulator grooves with the throttle body
lugs.
Tighten the insulator band screws (throttle body side) to
the specified range as shown.
Align

[1]

Front
14 ± 1.0 mm 14 ± 1.0 mm
(0.6 ± 0.04 in) (0.6 ± 0.04 in)

[2] [2]

7-15
