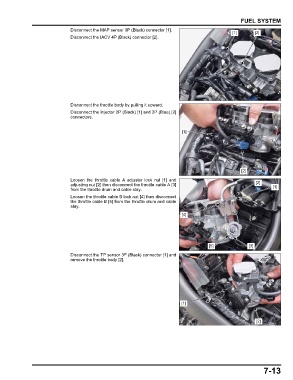

FUEL SYSTEM
Disconnect the MAP sensor 3P (Black) connector [1].
[1] [2]
Disconnect the IACV 4P (Black) connector [2].

Disconnect the throttle body by pulling it upward.
Disconnect the injector 2P (Black) [1] and 2P (Blue) [2]
connectors.

[1]

[2]
Loosen the throttle cable A adjuster lock nut [1] and
adjusting nut [2] then disconnect the throttle cable A [3] [2] [1]
from the throttle drum and cable stay.
Loosen the throttle cable B lock nut [4] then disconnect
the throttle cable B [5] from the throttle drum and cable
stay.
[4]

[5] [3]
Disconnect the TP sensor 3P (Black) connector [1] and
remove the throttle body [2].

[1]

[2]

7-13
