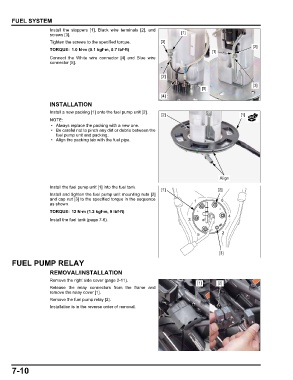

FUEL SYSTEM
Install the stoppers [1], Black wire terminals [2], and
screws [3]. [1]
Tighten the screws to the specified torque. [3]
[2]
TORQUE: 1.0 N·m (0.1 kgf·m, 0.7 lbf·ft) [1]
Connect the White wire connector [4] and Blue wire
connector [5].

[2]

[3]
[5]
[4]
INSTALLATION

Install a new packing [1] onto the fuel pump unit [2].
[2] [1]
• Always replace the packing with a new one.
• Be careful not to pinch any dirt or debris between the
fuel pump unit and packing.
• Align the packing tab with the fuel pipe.

Align
Install the fuel pump unit [1] into the fuel tank.
[1] [2]
Install and tighten the fuel pump unit mounting nuts [2]
and cap nut [3] to the specified torque in the sequence 1 6
as shown.
TORQUE: 12 N·m (1.2 kgf·m, 9 lbf·ft)
4
Install the fuel tank (page 7-6). 3

5 2

[3]

FUEL PUMP RELAY
REMOVAL/INSTALLATION
Remove the right side cover (page 2-11).
[1] [2]
Release the relay connectors from the frame and
remove the relay cover [1].
Remove the fuel pump relay [2].
Installation is in the reverse order of removal.

7-10
