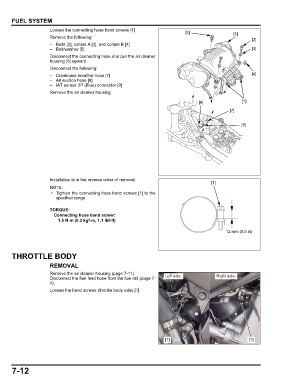

Page 184 - 2019 SHOP MANUAL CRF1000/A/D

dummyheadmmyhead
du

FUEL SYSTEM
Loosen the connecting hose band screws [1]
[5] [6]
Remove the following: [2]
– Bolts [2], collars A [3], and collars B [4]
– Bolt/washer [5] [3]
Disconnect the connecting hose and pull the air cleaner
housing [6] upward.
Disconnect the following:
– Crankcase breather hose [7] [4]
– Air suction hose [8]
– IAT sensor 2P (Blue) connector [9]
Remove the air cleaner housing.

[8] [1]
[7]

[9]

Installation is in the reverse order of removal.
[1]

• Tighten the connecting hose band screws [1] to the
specified range.

TORQUE:
Connecting hose band screw:
1.5 N·m (0.2 kgf·m, 1.1 lbf·ft)

12 mm (0.5 in)

THROTTLE BODY
REMOVAL

Remove the air cleaner housing (page 7-11). Left side: Right side:
Disconnect the fuel feed hose from the fuel rail (page 7-
4).
Loosen the band screws (throttle body side) [1].

[1] [1]

7-12
