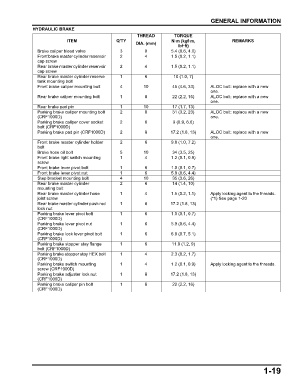

GENERAL INFORMATION
HYDRAULIC BRAKE
THREAD TORQUE
ITEM Q'TY N·m (kgf·m, REMARKS
DIA. (mm)
lbf·ft)
Brake caliper bleed valve 3 8 5.4 (0.6, 4.0)
Front brake master cylinder reservoir 2 4 1.5 (0.2, 1.1)
cap screw
Rear brake master cylinder reservoir 2 4 1.5 (0.2, 1.1)
cap screw
Rear brake master cylinder reserve 1 6 10 (1.0, 7)
tank mounting bolt
Front brake caliper mounting bolt 4 10 45 (4.6, 33) ALOC bolt: replace with a new
one.
Rear brake caliper mounting bolt 1 8 22 (2.2, 16) ALOC bolt: replace with a new
one.
Rear brake pad pin 1 10 17 (1.7, 13)
Parking brake caliper mounting bolt 2 8 31 (3.2, 23) ALOC bolt: replace with a new
(CRF1000D) one.
Parking brake caliper cover socket 2 6 9 (0.9, 6.6)
bolt (CRF1000D)
Parking brake pad pin (CRF1000D) 2 8 17.2 (1.8, 13) ALOC bolt: replace with a new
one.
Front brake master cylinder holder 2 6 9.8 (1.0, 7.2)
bolt
Brake hose oil bolt 5 10 34 (3.5, 25)
Front brake light switch mounting 1 4 1.2 (0.1, 0.9)
screw
Front brake lever pivot bolt 1 6 1.0 (0.1, 0.7)
Front brake lever pivot nut 1 6 5.9 (0.6, 4.4)
Step bracket mounting bolt 4 10 35 (3.6, 26)
Rear brake master cylinder 2 6 14 (1.4, 10)
mounting bolt
Rear brake master cylinder hose 1 4 1.5 (0.2, 1.1) Apply locking agent to the threads.
joint screw (*1) See page 1-20
Rear brake master cylinder push rod 1 8 17.2 (1.8, 13)
lock nut
Parking brake lever pivot bolt 1 6 1.0 (0.1, 0.7)
(CRF1000D)
Parking brake lever pivot nut 1 6 5.9 (0.6, 4.4)
(CRF1000D)
Parking brake lock lever pivot bolt 1 6 6.9 (0.7, 5.1)
(CRF1000D)
Parking brake stopper stay flange 1 6 11.9 (1.2, 9)
bolt (CRF1000D)
Parking brake stopper stay HEX bolt 1 4 2.3 (0.2, 1.7)
(CRF1000D)
Parking brake switch mounting 1 4 1.2 (0.1, 0.9) Apply locking agent to the threads.
screw (CRF1000D)
Parking brake adjuster lock nut 1 8 17.2 (1.8, 13)
(CRF1000D)
Parking brake caliper pin bolt 1 8 22 (2.2, 16)
(CRF1000D)

1-19
