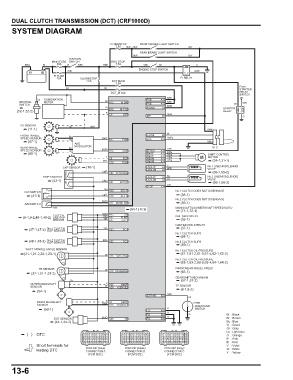

DUAL CLUTCH TRANSMISSION (DCT) (CRF1000D)
SYSTEM DIAGRAM

ILLUMI/STOP FRONT BRAKE LIGHT SWITCH
7.5A Bl/R Bl/R G/Y
REAR BRAKE LIGHT SWITCH
Bl/R G/Y
IGNITION
MAIN FUSE SWITCH ENG STOP
Bl/Gr Bl 30A R R/Bl R/Bl 7.5A Y/W Bl G
ENGINE STOP SWITCH
R/Bl Bl/W
FI FUSE
15A ILLUMI/STOP FI RELAY
7.5A DCT MAIN
7.5A
From
Bl W
STARTER
DCT_M 30A RELAY
SWITCH
R/W
Lg COMBINATION PVB A12
NEUTRAL METER Lg B15 NLSW R/W G/R
SWITCH PVB A13 Br/Bl Bl
Bl SUBVB A3 STARTER
(52-1,52-2) B16 M-TXD RELAY
P
C9 VSP Bl/W
IGP B1 G
VS SENSOR
Bl Bl/R
(11-1) Bl/W
W
FRONT WHEEL Bu K-LINE B9
SPEED SENSOR Bu/Y B17 FVW SCS B14 Gr/Bu
(67-1) W G/Bu
ABS
MODULATOR
REAR WHEEL Bu Y/W DLC
SPEED SENSOR W Bu/Bl B18 RVW ST-INH A16
(66-1) SMOP A12 P/Bu SHIFT CONTROL
SMOP A13 P/Bu
Y Y/Bu MOTOR
C8 PCP SMOM A23
W/Y SMOM A24 Y/Bu (24-1,31-1)
C16 PCM
Y No.1 LINEAR SOLENOID
CKP SENSOR (19-1) LSOL1P A6 W/R
LSOL1M A7 VALVE
Lg/R (55-1,55-2)
A30 SFTDOWN
Bu
SHIFT SWITCH LSOL2P A8 No.2 LINEAR SOLENOID
DOWN
(42-1) G/Bu LSOL2M A9 Gr VALVE
A31 SFTUP (56-1,56-2)
UP
G/Y
STOP A14
Bu
N-D SWITCH A20 SEL-D No.1 CLUTCH DOES NOT DISENGAGE
(41-1) Lg/Y A19 SEL-N (58-1)
No.2 CLUTCH DOES NOT DISENGAGE
Bu/Bl
A/M SWITCH A17 MODE SW (59-1)
Y/W MAINSHAFT/COUNTERSHAFT SPEED RATIO
(84-1) PCM
(71-1,72-1)
Gr/Bl
CLUTCH B13 SG
(9-1,9-2,49-1,49-2) LINE EOP R/G A27 PLINE FAIL SAFE RELAY
SENSOR Y/R B27 VCC1 (32-1)
IGNITION HOLD RELAY
(47-1,47-2) No.1 CLUTCH Y/G A33 PC1 (37-1)
EOP SENSOR
No.1 CLUTCH SLIPS
(68-1)
(48-1,48-2) No.2 CLUTCH Bl/G A32 PC2 No.2 CLUTCH SLIPS
EOP SENSOR
(69-1)
SHIFT SPINDLE ANGLE SENSOR
No.1 CLUTCH OIL PRESSURE
(21-1,21-2,22-1,23-1) W (61-1,61-2,61-3,61-4,62-1,62-2)
A28 SPDLANG
No.2 CLUTCH OIL PRESSURE
(63-1,63-2,63-3,63-4,64-1,64-2)
TR SENSOR W FRONT/REAR WHEEL SPEED
(27-1,51-1,51-2) A18 DRUMANG (65-1)
GEARSHIFT MECHANISM
Gr (57-1,57-2)
OUTER MAINSHAFT P A25 NM2P TP SENSOR
SENSOR W A26 VSENSE2
(54-1) (8-1,8-2)
G/W
SSTAND B23
UP
P
INNER MAINSHAFT Bl/Br A1 NM1P DOWN
SENSOR A15 VSENSE1
SIDESTAND
(53-1) LG B12 G SWITCH
G
PG B22 G Bl : Black
Bu/G G
EOT SENSOR A29 TO PG B33 Br : Brown
(44-1,44-2) Bu : Blue
G : Green
Gr : Gray
Lb : Light blue
( ) :DTC 1 2 3 4 5 6 7 8 9 10 11 1 2 3 4 5 6 7 8 9 10 11 1 2 3 4 5 6 7 8 9 10 11 O : Orange
12 13 14 15 16 17 18 19 20 21 22 12 13 14 15 16 17 18 19 20 21 22 12 13 14 15 16 17 18 19 20 21 22 P : Pink
23 24 25 26 27 28 29 30 31 32 33 23 24 25 26 27 28 29 30 31 32 33 23 24 25 26 27 28 29 30 31 32 33 R : Red
:Short terminals for V : Violet
PCM 33P (Blue) PCM 33P (Black) PCM 33P (Gray)
reading DTC CONNECTOR A CONNECTOR B CONNECTOR C W : White
(PCM SIDE) (PCM SIDE) (PCM SIDE) Y : Yellow
13-6
