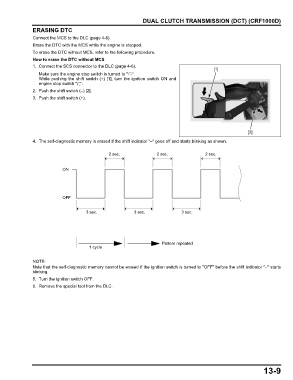

DUAL CLUTCH TRANSMISSION (DCT) (CRF1000D)
ERASING DTC
Connect the MCS to the DLC (page 4-6).
Erase the DTC with the MCS while the engine is stopped.
To erase the DTC without MCS, refer to the following procedure.
How to erase the DTC without MCS
1. Connect the SCS connector to the DLC (page 4-6).
[1]
Make sure the engine stop switch is turned to " ".
While pushing the shift switch (+) [1], turn the ignition switch ON and
engine stop switch " ".
2. Push the shift switch (–) [2].
3. Push the shift switch (+).

[2]
4. The self-diagnostic memory is erased if the shift indicator "–" goes off and starts blinking as shown.

2 sec. 2 sec. 2 sec.

ON

OFF

3 sec. 3 sec. 3 sec.

Pattern repeated
1 cycle

Note that the self-diagnostic memory cannot be erased if the ignition switch is turned to "OFF" before the shift indicator "–" starts
blinking.
5. Turn the ignition switch OFF.
6. Remove the special tool from the DLC.
