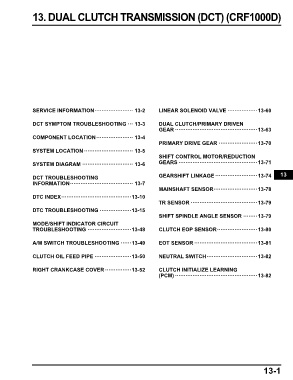

13. DUAL CLUTCH TRANSMISSION (DCT) (CRF1000D)
SERVICE INFORMATION······················ 13-2 LINEAR SOLENOID VALVE ·················13-60
DCT SYMPTOM TROUBLESHOOTING ··· 13-3 DUAL CLUTCH/PRIMARY DRIVEN
GEAR ···············································13-63
COMPONENT LOCATION····················· 13-4
PRIMARY DRIVE GEAR ······················13-70
SYSTEM LOCATION ···························· 13-5
SHIFT CONTROL MOTOR/REDUCTION
SYSTEM DIAGRAM ····························· 13-6 GEARS ·············································13-71
DCT TROUBLESHOOTING GEARSHIFT LINKAGE ························13-74 13
INFORMATION···································· 13-7
MAINSHAFT SENSOR·························13-78
DTC INDEX········································13-10
TR SENSOR ······································13-79
DTC TROUBLESHOOTING ··················13-15
SHIFT SPINDLE ANGLE SENSOR ········13-79
MODE/SHIFT INDICATOR CIRCUIT
TROUBLESHOOTING ·························13-48 CLUTCH EOP SENSOR·······················13-80
A/M SWITCH TROUBLESHOOTING ······13-49 EOT SENSOR ····································13-81
CLUTCH OIL FEED PIPE ·····················13-50 NEUTRAL SWITCH·····························13-82
RIGHT CRANKCASE COVER ···············13-52 CLUTCH INITIALIZE LEARNING
(PCM) ···············································13-82
13-1
