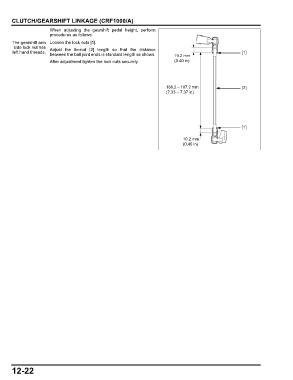

CLUTCH/GEARSHIFT LINKAGE (CRF1000/A)
When adjusting the gearshift pedal height, perform
procedures as follows:
The gearshift arm Loosen the lock nuts [1].
side lock nut has Adjust the tie-rod [2] length so that the distance
left hand threads. [1]
between the ball joint ends is standard length as shown. 10.2 mm
After adjustment tighten the lock nuts securely. (0.40 in)

186.2 – 187.2 mm [2]
(7.33 – 7.37 in)

[1]

10.2 mm
(0.40 in)

12-22
