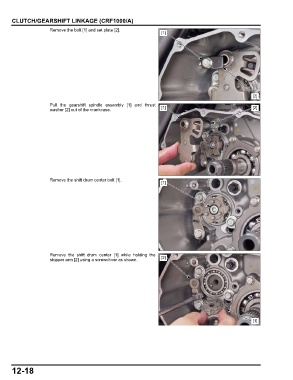

CLUTCH/GEARSHIFT LINKAGE (CRF1000/A)
Remove the bolt [1] and set plate [2].
[1]

[2]

Pull the gearshift spindle assembly [1] and thrust
washer [2] out of the crankcase. [1] [2]

Remove the shift drum center bolt [1].
[1]

Remove the shift drum center [1] while holding the
stopper arm [2] using a screwdriver as shown. [2]

[1]

12-18
