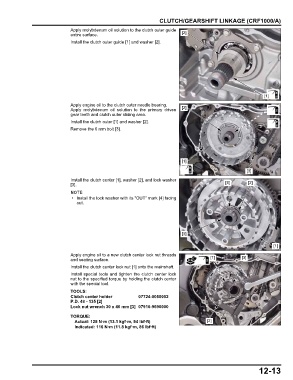

CLUTCH/GEARSHIFT LINKAGE (CRF1000/A)
Apply molybdenum oil solution to the clutch outer guide
entire surface. [2]
Install the clutch outer guide [1] and washer [2].

[1]

Apply engine oil to the clutch outer needle bearing.
Apply molybdenum oil solution to the primary driven [2]
gear teeth and clutch outer sliding area.
Install the clutch outer [1] and washer [2].
Remove the 6 mm bolt [3].

[1]

[3]
Install the clutch center [1], washer [2], and lock washer
[3]. [4] [2]

• Install the lock washer with its "OUT" mark [4] facing
out.

[3]

[1]
Apply engine oil to a new clutch center lock nut threads
and seating surface. [1] [3]
Install the clutch center lock nut [1] onto the mainshaft.
Install special tools and tighten the clutch center lock
nut to the specified torque by holding the clutch center
with the special tool.
TOOLS:
Clutch center holder 07724-0050002
P.D. 48 - 135 [2]
Lock nut wrench 30 x 40 mm [3] 07916-9690000

TORQUE:
Actual: 128 N·m (13.1 kgf·m, 94 lbf·ft) [2]
Indicated: 116 N·m (11.8 kgf·m, 86 lbf·ft)

12-13
