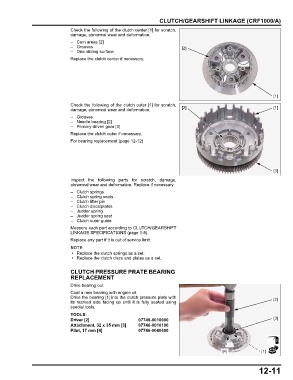

CLUTCH/GEARSHIFT LINKAGE (CRF1000/A)
Check the following of the clutch center [1] for scratch,
damage, abnormal wear and deformation.
– Cam areas [2]
–Grooves [2]
– Disc sliding surface
Replace the clutch center if necessary.

[1]

Check the following of the clutch outer [1] for scratch,
damage, abnormal wear and deformation. [2] [1]
–Grooves
– Needle bearing [2]
– Primary driven gear [3]
Replace the clutch outer if necessary.
For bearing replacement (page 12-12)

[3]
Inspect the following parts for scratch, damage,
abnormal wear and deformation. Replace if necessary.
– Clutch springs
– Clutch spring seats
– Clutch lifter pin
– Clutch discs/plates
– Judder spring
– Judder spring seat
– Clutch outer guide
Measure each part according to CLUTCH/GEARSHIFT
LINKAGE SPECIFICATIONS (page 1-8).
Replace any part if it is out of service limit.

• Replace the clutch springs as a set.
• Replace the clutch discs and plates as a set.

CLUTCH PRESSURE PRATE BEARING
REPLACEMENT
Drive bearing out.
Coat a new bearing with engine oil.
Drive the bearing [1] into the clutch pressure plate with [2]
its marked side facing up until it is fully seated using
special tools.
TOOLS:
Driver [2] 07749-0010000 [3]
Attachment, 32 x 35 mm [3] 07746-0010100
Pilot, 17 mm [4] 07746-0040400

[4] [1]

12-11
