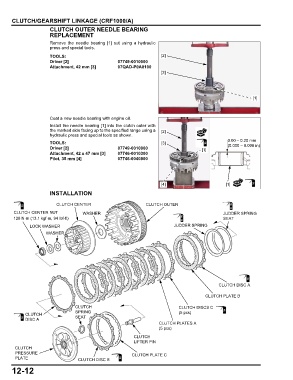

CLUTCH/GEARSHIFT LINKAGE (CRF1000/A)
CLUTCH OUTER NEEDLE BEARING
REPLACEMENT
Remove the needle bearing [1] out using a hydraulic
press and special tools.
TOOLS: [2]
Driver [2] 07749-0010000
Attachment, 42 mm [3] 07QAD-P0A0100
[3]

[1]

Coat a new needle bearing with engine oil.
Install the needle bearing [1] into the clutch outer with
the marked side facing up to the specified range using a [2]
hydraulic press and special tools as shown.
0.00 – 0.20 mm
TOOLS: [3] (0.000 – 0.008 in)
Driver [2] 07749-0010000 [1]
Attachment, 42 x 47 mm [3] 07746-0010300
Pilot, 35 mm [4] 07746-0040800

[4] [1
[1]]
INSTALLATION

CLUTCH CENTER CLUTCH OUTER
CLUTCH CENTER NUT WASHER JUDDER SPRING
128 N·m (13.1 kgf·m, 94 lbf·ft) SEAT
LOCK WASHER JUDDER SPRING
WASHER

CLUTCH DISC A
CLUTCH PLATE B

CLUTCH CLUTCH DISCS C
SPRING (5 pcs)
CLUTCH
DISC A SEAT
CLUTCH PLATES A
(5 pcs)
CLUTCH
LIFTER PIN
CLUTCH
PRESSURE CLUTCH PLATE C
PLATE CLUTCH DISC B
12-12
