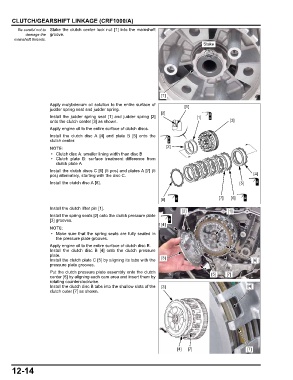

CLUTCH/GEARSHIFT LINKAGE (CRF1000/A)
Be careful not to Stake the clutch center lock nut [1] into the mainshaft
damage the groove.
mainshaft threads.
Stake

[1]

Apply molybdenum oil solution to the entire surface of [1]
judder spring seat and judder spring.
[2]
Install the judder spring seat [1] and judder spring [2] [1]
onto the clutch center [3] as shown. [3]
Apply engine oil to the entire surface of clutch discs.
Install the clutch disc A [4] and plate B [5] onto the
clutch center.
[2]
• Clutch disc A: smaller lining width than disc B
• Clutch plate B: surface treatment difference from
clutch plate A
Install the clutch discs C [6] (5 pcs) and plates A [7] (5
pcs) alternately, starting with the disc C. [4]
Install the clutch disc A [8]. [5]

[8] [7] [6]

Install the clutch lifter pin [1].
[2] [1]
Install the spring seats [2] onto the clutch pressure plate
[3] grooves.
[4]
• Make sure that the spring seats are fully seated in
the pressure plate grooves.
Apply engine oil to the entire surface of clutch disc B.
Install the clutch disc B [4] onto the clutch pressure
plate.
Install the clutch plate C [5] by aligning its tabs with the [3] [6]
pressure plate grooves.
Put the clutch pressure plate assembly onto the clutch [5] [7]
center [6] by aligning each cam area and insert them by
rotating counterclockwise.
Install the clutch disc B tabs into the shallow slots of the [3] [4]
clutch outer [7] as shown.

[4] [7] [7]

12-14
