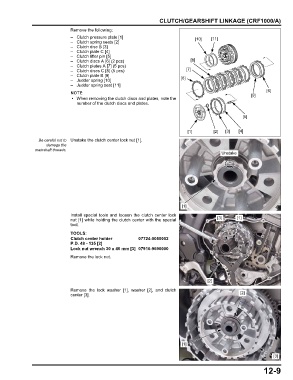

CLUTCH/GEARSHIFT LINKAGE (CRF1000/A)
Remove the following:
– Clutch pressure plate [1] [10] [11]
– Clutch spring seats [2]
– Clutch disc B [3]
– Clutch plate C [4]
– Clutch lifter pin [5]
– Clutch discs A [6] (2 pcs) [8]
– Clutch plates A [7] (5 pcs)
– Clutch discs C [8] (5 pcs) [7]
– Clutch plate B [9]
– Judder spring [10] [6]
– Judder spring seat [11]
[6]
[9]
• When removing the clutch discs and plates, note the
number of the clutch discs and plates.

[5]

[1] [2] [3] [4]
Be careful not to Unstake the clutch center lock nut [1].
damage the
mainshaft threads.
Unstake

[1]
Install special tools and loosen the clutch center lock
nut [1] while holding the clutch center with the special [3] [1]
tool.
TOOLS:
Clutch center holder 07724-0050002
P.D. 48 - 135 [2]
Lock nut wrench 30 x 40 mm [3] 07916-9690000
Remove the lock nut.

[2]
Remove the lock washer [1], washer [2], and clutch
center [3]. [2]

[1]

[3]

12-9
