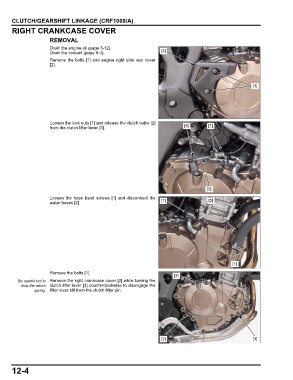

CLUTCH/GEARSHIFT LINKAGE (CRF1000/A)
RIGHT CRANKCASE COVER

REMOVAL
Drain the engine oil (page 3-12).
Drain the coolant (page 8-4). [2]
Remove the bolts [1] and engine right side rear cover
[2].

[1]

Loosen the lock nuts [1] and release the clutch cable [2]
from the clutch lifter lever [3]. [3] [1]

[2]
Loosen the hose band screws [1] and disconnect the
water hoses [2]. [1] [2]

[1]
Remove the bolts [1].
[3]
Be careful not to Remove the right crankcase cover [2] while turning the
drop the return clutch lifter lever [3] counterclockwise to disengage the
spring. lifter lever slit from the clutch lifter pin.

[2] [1]

12-4
