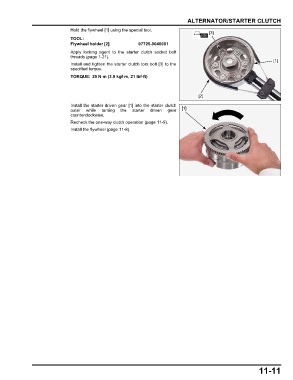

ALTERNATOR/STARTER CLUTCH
Hold the flywheel [1] using the special tool.
[3]
TOOL:
Flywheel holder [2] 07725-0040001
Apply locking agent to the starter clutch socket bolt
threads (page 1-21).
[1]
Install and tighten the starter clutch torx bolt [3] to the
specified torque.
TORQUE: 29 N·m (3.0 kgf·m, 21 lbf·ft)

[2]

Install the starter driven gear [1] into the starter clutch
outer while turning the starter driven gear [1]
counterclockwise.
Recheck the one-way clutch operation (page 11-9).
Install the flywheel (page 11-8).

11-11
