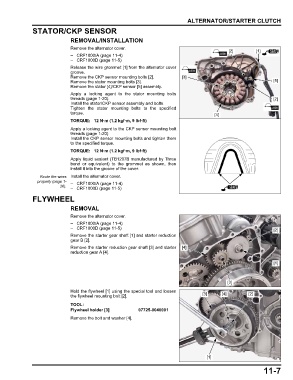

ALTERNATOR/STARTER CLUTCH
STATOR/CKP SENSOR

REMOVAL/INSTALLATION
Remove the alternator cover.
[2] [1]
– CRF1000/A (page 11-4)
– CRF1000D (page 11-5)
Release the wire grommet [1] from the alternator cover
groove.
Remove the CKP sensor mounting bolts [2]. [3]
Remove the stator mounting bolts [3]. [5]
Remove the stator [4]/CKP sensor [5] assembly.
Apply a locking agent to the stator mounting bolts
threads (page 1-20). [2]
Install the stator/CKP sensor assembly and bolts.
Tighten the stator mounting bolts to the specified
torque.
[4]
TORQUE: 12 N·m (1.2 kgf·m, 9 lbf·ft)
Apply a locking agent to the CKP sensor mounting bolt
threads (page 1-20).
Install the CKP sensor mounting bolts and tighten them
to the specified torque.
TORQUE: 12 N·m (1.2 kgf·m, 9 lbf·ft)
Apply liquid sealant (TB1207B manufactured by Three
bond or equivalent) to the grommet as shown, then
install it into the groove of the cover.

Route the wires Install the alternator cover.
properly (page 1- – CRF1000/A (page 11-4)
26).
– CRF1000D (page 11-5)
FLYWHEEL

REMOVAL
Remove the alternator cover.
– CRF1000/A (page 11-4)
– CRF1000D (page 11-5) [2]
Remove the starter gear shaft [1] and starter reduction
gear B [2].
Remove the starter reduction gear shaft [3] and starter [4]
reduction gear A [4].

[1]

[3]
Hold the flywheel [1] using the special tool and loosen
the flywheel mounting bolt [2]. [3] [4] [2]

TOOL:
Flywheel holder [3] 07725-0040001
Remove the bolt and washer [4].

[1]
