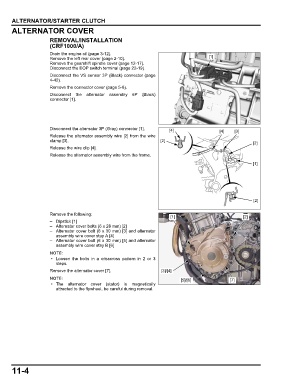

ALTERNATOR/STARTER CLUTCH
ALTERNATOR COVER

REMOVAL/INSTALLATION
(CRF1000/A)
Drain the engine oil (page 3-12).
Remove the left rear cover (page 2-10). [1]
Remove the gearshift spindle cover (page 12-17).
Disconnect the EOP switch terminal (page 22-19).
Disconnect the VS sensor 3P (Black) connector (page
4-42).
Remove the connector cover (page 5-8).
Disconnect the alternator assembly 6P (Black)
connector [1].

Disconnect the alternator 3P (Gray) connector [1]. [4] [4] [3]
Release the alternator assembly wire [2] from the wire
clamp [3]. [2]
[2]
Release the wire clip [4].
Release the alternator assembly wire from the frame.
[1]

[2]

Remove the following:
[1] [2]
– Dipstick [1]
– Alternator cover bolts (6 x 28 mm) [2]
– Alternator cover bolt (6 x 30 mm) [3] and alternator
assembly wire cover stay A [4]
– Alternator cover bolt (6 x 30 mm) [5] and alternator
assembly wire cover stay B [6]

• Loosen the bolts in a crisscross pattern in 2 or 3
steps.
Remove the alternator cover [7]. [3]/[4]
[5]/[6] [7]
• The alternator cover (stator) is magnetically
attracted to the flywheel, be careful during removal.
