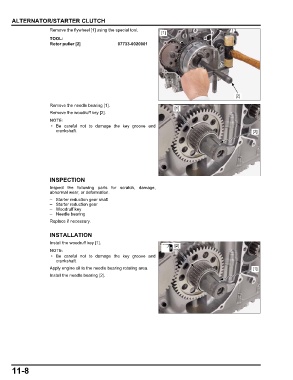

ALTERNATOR/STARTER CLUTCH
Remove the flywheel [1] using the special tool.
[1]
TOOL:
Rotor puller [2] 07733-0020001

[2]

Remove the needle bearing [1].
[1]
Remove the woodruff key [2].

• Be careful not to damage the key groove and
crankshaft. [2]

INSPECTION
Inspect the following parts for scratch, damage,
abnormal wear, or deformation.
– Starter reduction gear shaft
– Starter reduction gear
– Woodruff key
– Needle bearing
Replace if necessary.

INSTALLATION

Install the woodruff key [1].
[2]
• Be careful not to damage the key groove and
crankshaft.
Apply engine oil to the needle bearing rotating area. [1]
Install the needle bearing [2].

11-8
