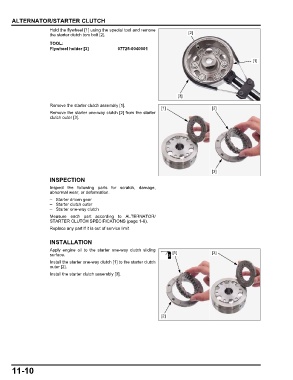

ALTERNATOR/STARTER CLUTCH
Hold the flywheel [1] using the special tool and remove
the starter clutch torx bolt [2]. [2]

TOOL:
Flywheel holder [3] 07725-0040001

[1]

[3]

Remove the starter clutch assembly [1].
[1] [2]
Remove the starter one-way clutch [2] from the starter
clutch outer [3].

[3]
INSPECTION
Inspect the following parts for scratch, damage,
abnormal wear, or deformation.
– Starter driven gear
– Starter clutch outer
– Starter one-way clutch
Measure each part according to ALTERNATOR/
STARTER CLUTCH SPECIFICATIONS (page 1-8).
Replace any part if it is out of service limit.

INSTALLATION
Apply engine oil to the starter one-way clutch sliding
surface. [1] [3]
Install the starter one-way clutch [1] to the starter clutch
outer [2].
Install the starter clutch assembly [3].

[2]

11-10
