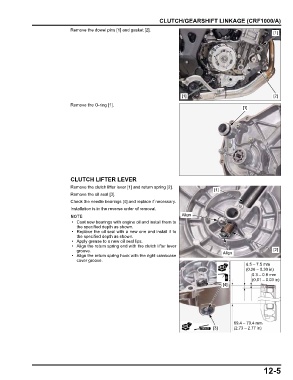

CLUTCH/GEARSHIFT LINKAGE (CRF1000/A)
Remove the dowel pins [1] and gasket [2].
[1]

[1] [2]

Remove the O-ring [1].
[1]

CLUTCH LIFTER LEVER
Remove the clutch lifter lever [1] and return spring [2].
[1]
Remove the oil seal [3].
Check the needle bearings [4] and replace if necessary.
Installation is in the reverse order of removal.
Align
• Coat new bearings with engine oil and install them to
the specified depth as shown.
• Replace the oil seal with a new one and install it to
the specified depth as shown.
• Apply grease to a new oil seal lips.
• Align the return spring end with the clutch lifter lever
groove. Align [2]
• Align the return spring hook with the right crankcase
cover groove.
6.5 – 7.5 mm
(0.26 – 0.30 in)
0.3 – 0.8 mm
(0.01 – 0.03 in)
[4]

69.4 – 70.4 mm
[3] (2.73 – 2.77 in)

12-5
