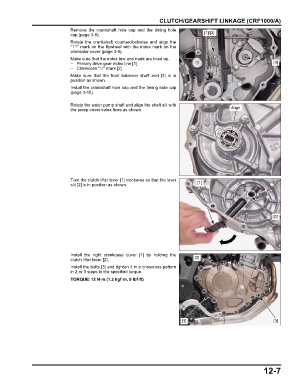

CLUTCH/GEARSHIFT LINKAGE (CRF1000/A)
Remove the crankshaft hole cap and the timing hole
cap (page 3-8). [1]/[2]
Rotate the crankshaft counterclockwise and align the
"T1" mark on the flywheel with the index mark on the
alternator cover (page 3-8).
Make sure that the index line and mark are lined up.
– Primary drive gear index line [1] [3]
– Crankcase " " mark [2]
Make sure that the front balancer shaft end [3] is in
position as shown.
Install the crankshaft hole cap and the timing hole cap
(page 3-10).

Rotate the water pump shaft and align the shaft slit with
the pump cover index lines as shown. Align

Turn the clutch lifter lever [1] clockwise so that the lever
slit [2] is in position as shown. [1]

[2]

Install the right crankcase cover [1] by holding the
clutch lifter lever [2]. [2]
Install the bolts [3] and tighten it in a crisscross pattern
in 2 or 3 steps to the specified torque.
TORQUE:12 N·m (1.2 kgf·m, 9 lbf·ft)

[1] [3]

12-7
