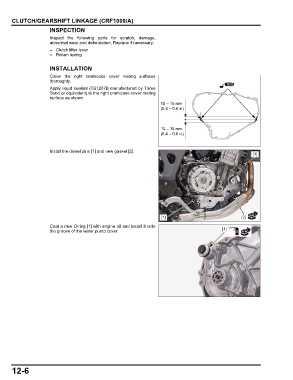

CLUTCH/GEARSHIFT LINKAGE (CRF1000/A)
INSPECTION
Inspect the following parts for scratch, damage,
abnormal wear and deformation. Replace if necessary.
– Clutch lifter lever
– Return spring

INSTALLATION
Clean the right crankcase cover mating surfaces
thoroughly.
Apply liquid sealant (TB1207B manufactured by Three
Bond or equivalent) to the right crankcase cover mating
surface as shown.
10 – 15 mm
(0.4 – 0.6 in)

10 – 15 mm
(0.4 – 0.6 in)

Install the dowel pins [1] and new gasket [2].
[1]

[1] [2]
Coat a new O-ring [1] with engine oil and install it onto
the groove of the water pump cover. [1]

12-6
