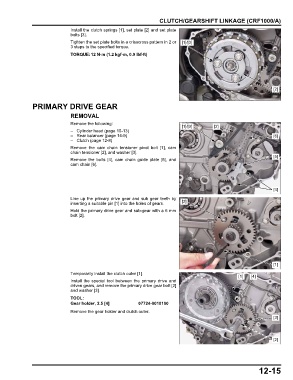

CLUTCH/GEARSHIFT LINKAGE (CRF1000/A)
Install the clutch springs [1], set plate [2] and set plate
bolts [3].
Tighten the set plate bolts in a crisscross pattern in 2 or [1]/[3]
3 steps to the specified torque.
TORQUE:12 N·m (1.2 kgf·m, 0.9 lbf·ft)

[2]

PRIMARY DRIVE GEAR
REMOVAL

Remove the following:
[1]/[3] [2]
– Cylinder head (page 10-13)
– Rear balancer (page 14-9) [6]
– Clutch (page 12-8)
Remove the cam chain tensioner pivot bolt [1], cam
chain tensioner [2], and washer [3].
[5]
Remove the bolts [4], cam chain guide plate [5], and
cam chain [6].

[4]
Line up the primary drive gear and sub gear teeth by
inserting a suitable pin [1] into the holes of gears. [2]
Hold the primary drive gear and sub-gear with a 6 mm
bolt [2].

[1]

Temporarily install the clutch outer [1].
[1] [4]
Install the special tool between the primary drive and
driven gears, and remove the primary drive gear bolt [2]
and washer [3].
TOOL:
Gear holder, 2.5 [4] 07724-0010100
Remove the gear holder and clutch outer.
[3]

[2]

12-15
