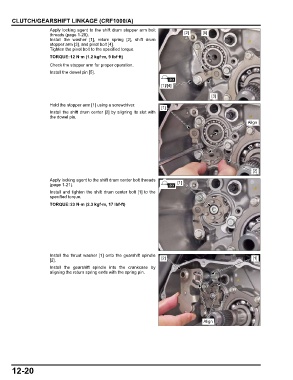

CLUTCH/GEARSHIFT LINKAGE (CRF1000/A)
Apply locking agent to the shift drum stopper arm bolt
threads (page 1-20). [2] [5]
Install the washer [1], return spring [2], shift drum
stopper arm [3], and pivot bolt [4].
Tighten the pivot bolt to the specified torque.
TORQUE:12 N·m (1.2 kgf·m, 9 lbf·ft)
Check the stopper arm for proper operation.
Install the dowel pin [5].

[1]/[4]
[3]

Hold the stopper arm [1] using a screwdriver.
[1]
Install the shift drum center [2] by aligning its slot with
the dowel pin.
Align

[2]
Apply locking agent to the shift drum center bolt threads
(page 1-21). [1]
Install and tighten the shift drum center bolt [1] to the
specified torque.
TORQUE:23 N·m (2.3 kgf·m, 17 lbf·ft)

Install the thrust washer [1] onto the gearshift spindle
[2]. [2] [1]
Install the gearshift spindle into the crankcase by
aligning the return spring ends with the spring pin.

Align

12-20
