ANTI-LOCK BRAKE SYSTEM (ABS) (CRF1000A/D)

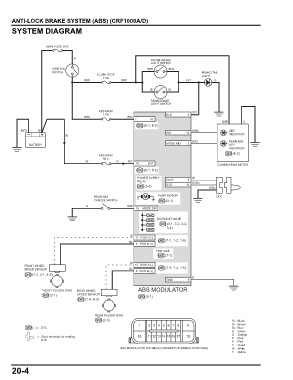

SYSTEM DIAGRAM

MAIN FUSE 30 A

R
FRONT BRAKE
LIGHT SWITCH
IGNITION Bl/R Bl/G
SWITCH BRAKE/TAIL
ILLUMI STOP LIGHT
7.5A
R/Bl Bl/R G/Y G
Bl Bl

REAR BRAKE
LIGHT SWITCH
ABS MAIN G/Y
7.5A BLS 4
R/Bl R/G
7 IG
Bl/R G
(6-1, 6-2)
Bl/Gr Bl W/Bu ABS
IND 13
Bl INDICATOR
W/G REAR ABS
MODE IND 2
BATTERY OFF
INDICATOR
(8-2)
ABS MAIN
30 A
W R R/Y
18 BAT COMBINATION METER
(6-1, 6-2)
POWER SUPPLY W
RELAY DIAG 5 Gr/Bu
SCS 14
(5-4) G/Bu
PUMP MOTOR
REAR ABS DLC
CANCEL SWITCH (5-1)
G R/Bl
16
MODE SW
SOLENOID VALVE
(3-1, 3-2, 3-3,
3-4)
W
17 FVW S (-)
(1-1, 1-2, 1-5)
Bu
8 FVW B (+)
TIRE SIZE
(7-1)
W
FRONT WHEEL 15 RVW S (-) (1-3, 1-4, 1-5)
SPEED SENSOR Bu
6 RVW B (+)
(1-2, 4-1, 4-2)
G
GND 9
FRONT PULSER RING REAR WHEEL ABS MODULATOR
(2-1) SPEED SENSOR (8-1)
(1-4, 4-3)

REAR PULSER RING
(2-3) Bl : Black
1 2345678 9 Br : Brown
( ) = DTC Bu : Blue
G : Green
O : Orange
= Short terminals for reading 10 11 12 13 14 15 16 17 18 P : Pink
DTC
R : Red
V : Violet
ABS MODULATOR 18P (Black) CONNECTOR (MODULATOR SIDE) W : White
Y : Yellow
