ANTI-LOCK BRAKE SYSTEM (ABS) (CRF1000A/D)

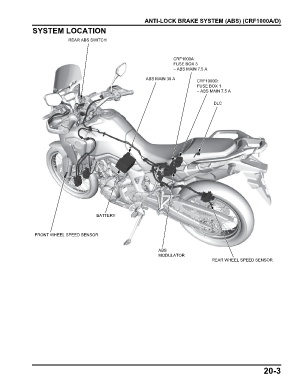

SYSTEM LOCATION

REAR ABS SWITCH

CRF1000A:
FUSE BOX 3
– ABS MAIN 7.5 A

ABS MAIN 30 A
CRF1000D:
FUSE BOX 1
– ABS MAIN 7.5 A

DLC

BATTERY

FRONT WHEEL SPEED SENSOR

ABS
MODULATOR
REAR WHEEL SPEED SENSOR
