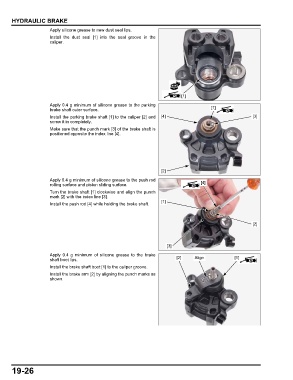

HYDRAULIC BRAKE
Apply silicone grease to new dust seal lips.
Install the dust seal [1] into the seal groove in the
caliper.

[1]

Apply 0.4 g minimum of silicone grease to the parking
brake shaft outer surface. [1]
Install the parking brake shaft [1] to the caliper [2] and [4] [3]
screw it in completely.
Make sure that the punch mark [3] of the brake shaft is
positioned opposite the index line [4].

[2]
Apply 0.4 g minimum of silicone grease to the push rod
rolling surface and piston sliding surface. [4]
Turn the brake shaft [1] clockwise and align the punch
mark [2] with the index line [3].
[1]
[2]
Install the push rod [4] while holding the brake shaft.

[2]

[3]
Apply 0.4 g minimum of silicone grease to the brake
shaft boot lips. [2] Align [1]
Install the brake shaft boot [1] to the caliper groove.
Install the brake arm [2] by aligning the punch marks as
shown.

19-26
